It happens again and again that buses do not stop at the bus stop, be it because of location, heavy fog, rain or other reasons.

With SeeUs, Swiss Innovation Lab helps you to avoid leaving any waiting passengers behind. With its integrated LED lights and wireless communication, SeeUs informs approaching buses of passengers waiting as well as if boarding support is required thus increasing driver awareness and accessibility.

SeeUs can also be configured to increase the safety at bus stops and pedestrian crossings. It can be combined with security Tags that automatically activate LED blinking when in proximity. This is especially suited to increase safety around schools.

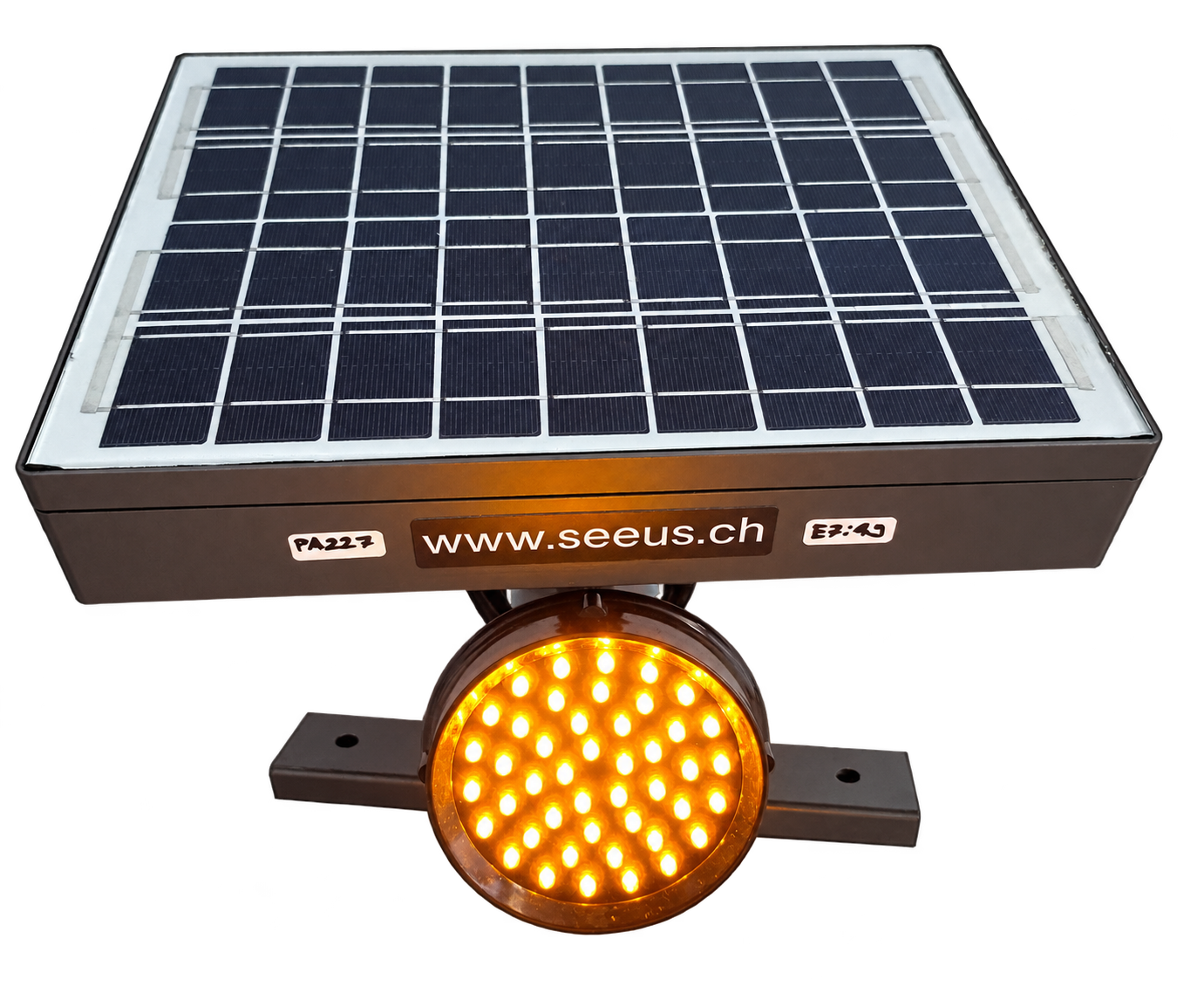

SeeUs Central Unit

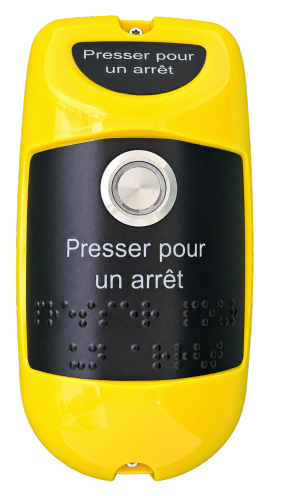

SeeUs Pushbutton



SeeUs has been designed to increase driver awareness and make public transport more efficient and accessible.. The system basically consists of the Master and LED Unit, the Push Button and the optional Vehicle Unit.

The Push Button activates the LED Unit which informs approaching buses of the stop request. In addition to the optically flashing LEDs, the device can also exchange information over Bluetooth with approaching buses.

SeeUs increases awareness and reduces stress for the driver. It makes sure that the driver is informed of waiting passengers and if boarding support is required. With this the overall travel experience is improved.





Robust, powerful and easy to install

SeeUs is made of robust IP65 sheet metal housing. Thanks to its rotating design, the LED unit is always pointing in the right direction while the solar panel can be optimized for best angle. Different mounting supports exist to allow easy installation practically anywhere.

SeeUs is powered by solar panel so there is no need for any power installation. As a backup it is equipped with a LiFeYPo4 battery for up to 3 months operation. Thanks to the optional NB-IoT connectivity, the unit can be connected to the SeeUs cloud based monitoring system assuring that everything is working properly.

SeeUs can be configured with different LEDs ranging from 23mm to 88mm in diameter. The LEDs can be adjusted in intensity, dimmed at night and programmed with different flashing patterns. LEDs according to EN 12352 is available as option. Also available as options are LEDs on both sides as well as LED for providing light at a station.





Multiple triggering device choices - tailored to your use



SeeUs supports a wide range of triggering devices including pushbutton, infrared presence detector, tag and MyAid app for smartphones. All of these devices work with Bluetooth Low Energy (BLE) and are battery powered. This caters for flexible and easy installation.

The SeeUs Pushbutton enclosure is made in strong polycarbonate and is available with one or two pushbuttons. Battery life is over 10 years.

The SeeUs Tag comes with a replaceable battery allowing 3 years of operation. It has an integrated accelerometer for optimized broadcasting.






Keeping the driver informed

The SeeUs vehicle unit is an android app running in kiosk mode. It detects broadcasts from SeeUs stops and informs the driver accordingly i.e. waiting passengers and if support is requested.

It also reacts on onboard activation from the SeeUs app enabling a passenger to trigger stop and deboarding support directly from the app. The communication is made possible via an integrated Bluetooth Low Energy module.

On project basis the vehicle unit can also be made ITXPT compatible.


Vehicle App on Holder.png

You can download PDF version of SeeUs user manual by pressing the Download PDF button below.

User manual is currently available only in German language.
